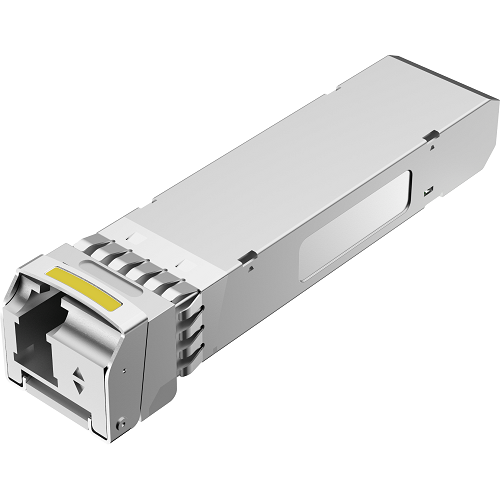

10G BIDI SFP+
| Name: | 10G BIDI SFP+ |
|---|---|
产品描述
10G BIDI SFP+ series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-ER/EW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.10G BIDI SFP+ module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm;.The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section consists of a APD photodiode integrated with a TIA.
Features
▪ Supports 9.95Gb/s to 10.3Gb/s data rates
▪ Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
▪ Single 3.3V Supply
▪ Up to 50km on 9/125um SMF
▪ A:1270nm DFB Laser transmitter,1330nm APD receiver B:1330nm DFB Laser transmitter,1270nm APD receiver
▪ SFP+ MSA SFF-8431 Compliant
▪ Digital Diagnostic SFF-8472 Compliant
▪ RoHS compliant and Lead Free
▪ Operating case temperature: Standard: 0 ~ 70 °C
Applications
▪ 10GBASE-ER at 10.3125Gbps
▪ 10GBASE-EW at 9.953Gbps
▪ Other Optical Links
