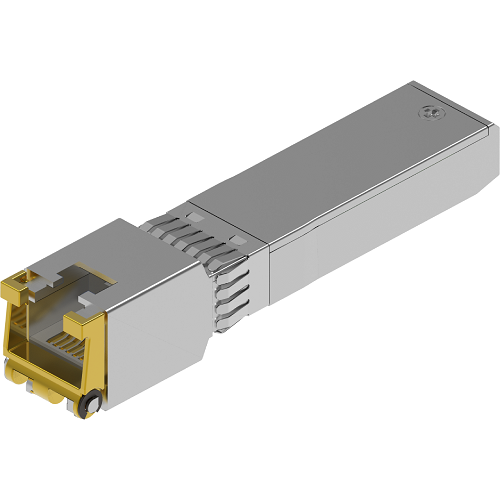

10G Copper SFP+
| Name: | 10G Copper SFP+ |
|---|---|
产品描述
Features
▪ Supports Links up to 30m using Cat 6A Cable
▪ SFF-8431 and SFF-8432 MSA Compliant
▪ IEEE 802.3az and 802.3an Compliant
▪ IEEE 802.3bz for 5G&2.5G BASE-T
▪ Hot-pluggable SFP+ footprint
▪ TX Disable and RX Los function
▪ Fully metallic enclosure for Low EMI Emissions
▪ +3.3V single power supply
▪ Low Power Consumption (2.5W MAX @ 30m)
▪ Compact RJ-45 connector assembly
▪ Access to physical layer IC via 2-wire serial bus
▪ XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
▪ Auto-negotiates with other 10GBase-T PHYs
▪ Supports 100/1000Base-T using Cat 5e cable or better
▪ MDI/MDIX Crossover
▪ Multiple Loopback Modes for Testing and Troubleshooting
▪ Built-in Cable Monitoring and Link Diagnostic
▪ Unshielded and Shielded cable support
▪ Commercial operating case temperature range of 0°C to 70°C
