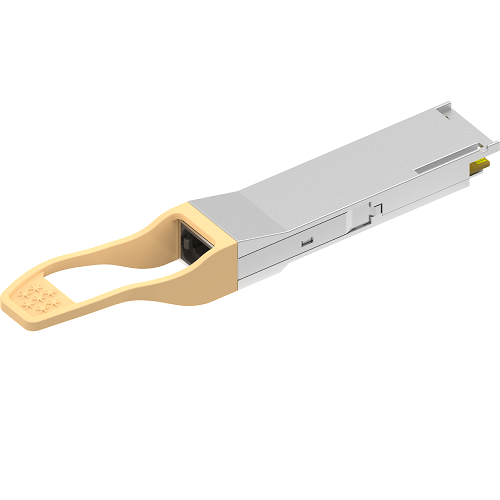

Name:	100G QSFP28 SR4 100m/300m

产品描述

Features

▪ Hot-pluggable QSFP28 form factor

▪ Full-duplex transceiver modules

▪ 4-channel 850nm VCSEL array and PIN photo-detector array

▪ Internal CDR circuits on both receiver and transmitter channels

▪ Support CDR bypass

▪ Data rate up to 25.78125Gbps or 28.05Gbps per channel

▪ Compliant with 100GBASE-SR4 Ethernet

▪ Compliant with 40GBASE-SR4 Ethernet, InfiniBand 4x FDR/EDR, OTN OTU4 and 128GFC/4x32GFC

▪ Power consumption < 2W

▪ Maximum link length of 100m on MMF

▪ MPO12 receptacle

▪ Operating case temperature range: 0°C to 70°C or -40°C to +85°C

▪ 3.3V power supply voltage

▪ RoHS 6 compliant(lead free)

Applications

▪ 100GBASE-SR4 Ethernet

▪ CPRI/eCPRI

▪ 40GBASE-SR4 Ethernet

▪ InfiniBand 4x FDR/EDR

▪ OTN OTU4

▪ 128GFC/4x32GFC
