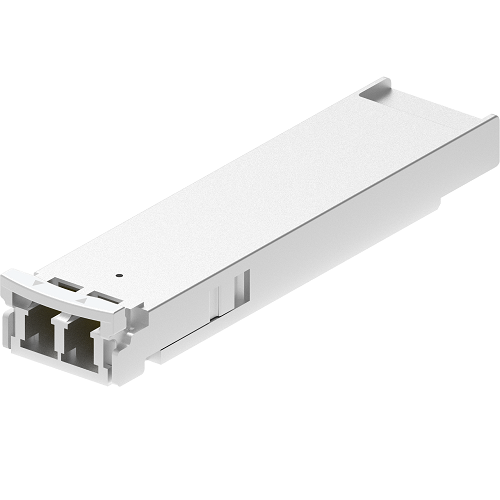

10G XFP DWDM
| Name: | 10G XFP DWDM |
|---|---|
产品描述
DWDM XFP transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G Fiber Channel applications. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
▪ Wavelength selectable to C-band ITU-T grid wavelengths
▪ Suitable for use in 100GHz channel spacing DWDM systems
▪ XFP MSA Rev 4.5 Compliant
▪ Data rate from 9.95Gbps to 11.3Gbps
▪ No Reference Clock required
▪ Cooled EML and PIN receiver
▪ Link length up to 40km
▪ Low Power Dissipation 3.5W Maximum
▪ XFI and lineside loopback Mode Supported
▪ -5ºC to 70ºC Operating Case Temperature
▪ Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
▪ RoHS6 compliant (lead free)
Applications
▪ SONET OC-192 & SDH STM 64
▪ 10GBASE ER/EW
▪ 40km 10G Fiber Channel
▪ DWDM Networks
