10G XFP

Name:	10G XFP

产品描述

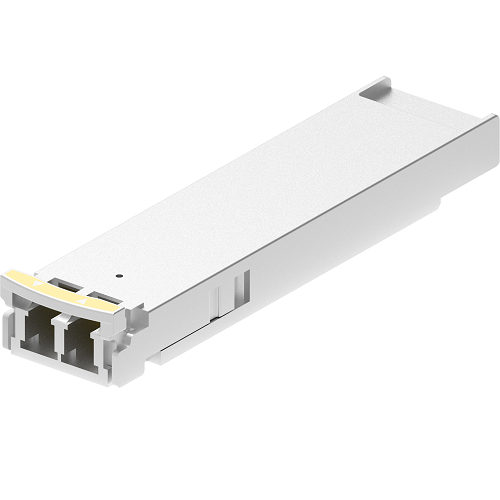

10G XFP is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-ER) or 9.953Gbps, and transmission distance up to 40km on SMF. The transceiver module comprises a transmitter with 1310nm Uncooled DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features

▪ Supports 9.95Gb/s to 11.1Gb/s bit rates

▪ Hot-pluggable XFP footprint

▪ Maximum link length of 40km with SMF

▪ 1310nm Uncooled DFB laser

▪ XFP MSA package with duplex LC connector

▪ No reference clock required

▪ +1.8V,+3.3V Supply Voltage

▪ XFI and lineside loopback Mode Supported

▪ -5ºC to 70ºC Operating Case Temperature

▪ Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power

▪ RoHS6 compliant (lead free)
