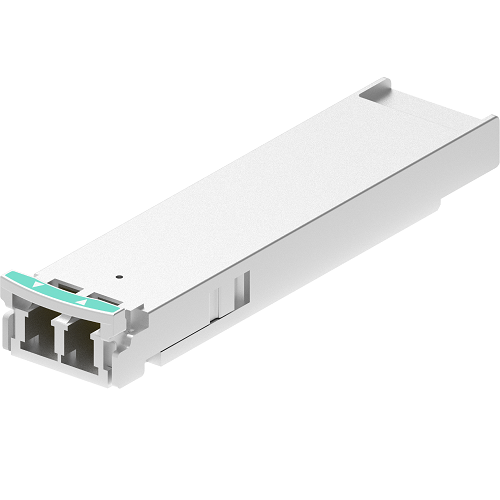

10G XFP CWDM
| Name: | 10G XFP CWDM |
|---|---|
Product Description
10G CWDM XFP is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF. The transceiver module comprises a transmitter with uncooled CWDM DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Features
▪ 8-Wavelengths Uncooled CWDM DFB laser from1470nm to 1610nm, with Step 20nm
▪ Supports 9.95Gbps to 11.3Gbps bit rates
▪ XFP MSA Rev 4.5 Compliant
▪ Maximum link length of 10km with SMF
▪ No reference clock required
▪ +1.8V,+3.3V Supply Voltage
▪ Low Power Dissipation 2.5W Maximum
▪ XFI and lineside loopback mode supported
▪ 0ºC to 70ºC Operating Case Temperature
▪ Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
▪ RoHS6 compliant (lead free)
Applications
▪ SDH STM I-64.1 at 9.953Gbps
▪ 10GBASE-LR/LW 10G Ethernet
▪ 10G Fiber Channel
